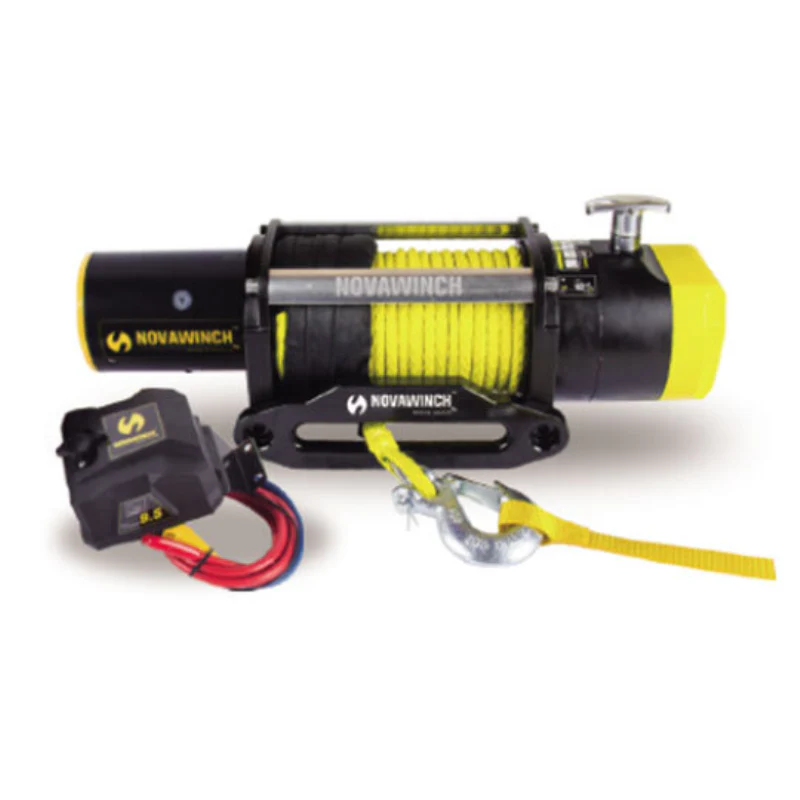

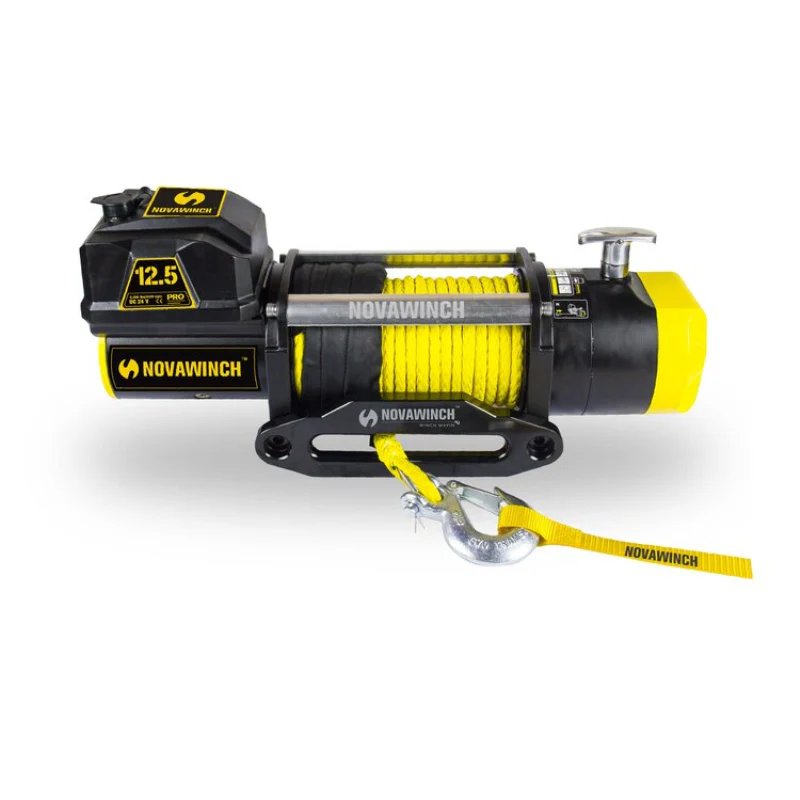

Novawinch PRO 12500 winch, 12v, Synthetic Rope Model 701001068584
The NOVAWINCH PRO Series is built to be the very best winch using the very best in performance parts. The Novawinch commitment to excellence is evident in every aspect of its design. Featuring exclusive innovations such as the industry-first brake that doesn’t heat the rope drum, the NOVAWINCH PRO Series sets a new standard for winch performance. With excitingly fast line speed and a host of other cutting-edge features, it delivers unmatched reliability, durability, and efficiency in every operation.

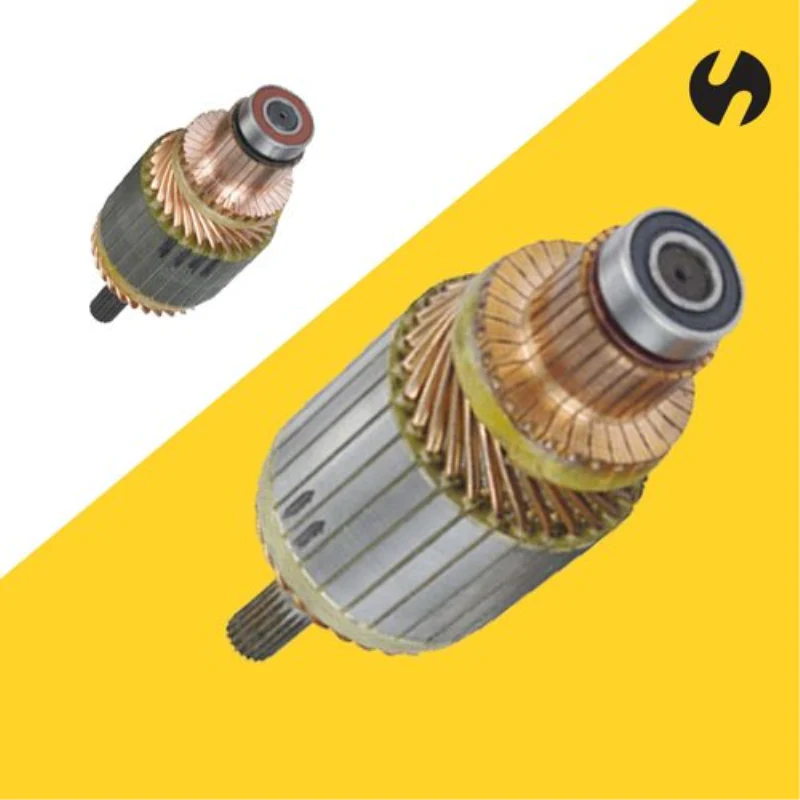

- It's fast. Sealed 6.0 HP motors deliver a quick but safe 52 FPM line speed at a low 50 Amp draw.
- Smart electronics: Anti-high temperature silver pad, 500A Sealed contactor. Only 360A full load current which is the lowest in the industry field. The contactor will never get stuck.
- IP68 rated sealing keeps elements out and winch running.
- Smart brake: innovative “Double-lock” 100% load-holding brake design provides zero drag on cable in. Located inside the gearbox away from the drum to eliminate heat transfer to the synthetic rope.
- Made to last: SUS304 stainless steel hardware on winch body and roller fairlead, 2 aluminum tie bars for rigidity and 45 degree clocking freespool for tricky mounts.
| PRO 12500 Specifications | |
| Rated Line Pull | 12,500 lbs (5670kgs) |
| Motor(Series wound): | DC 12V: 6.4hp/4.7kW |

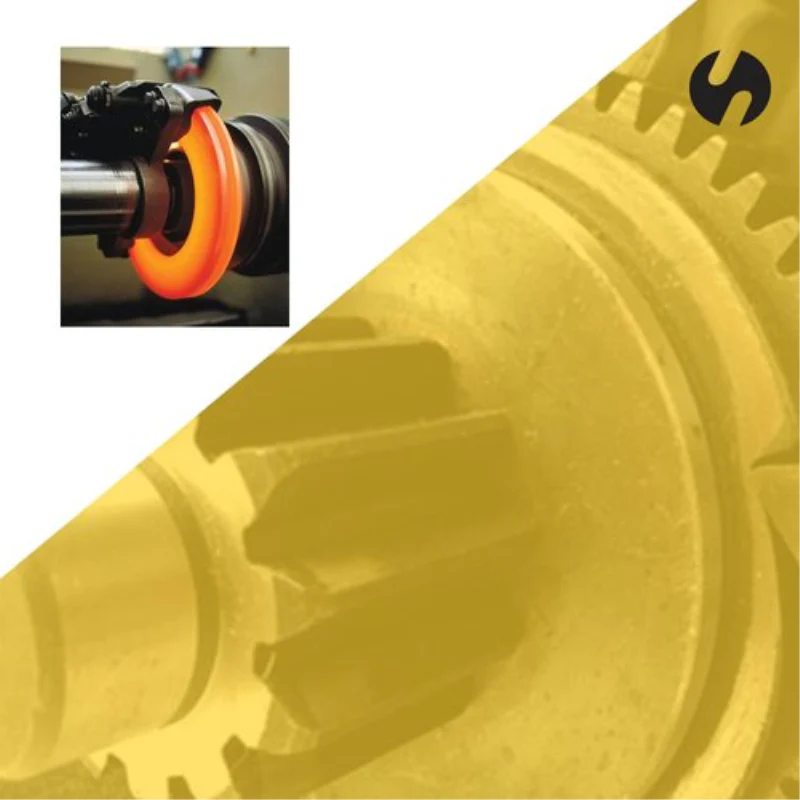

| Gear Box | 2-Stage Planetary/2-Stage Spur Gear |
| Gear Ratio | 171:1 |
| Clutch | Pull & Turn |
| Braking Action | Automatic, 100% Load Holding Brake in gear box |
| Fairlead | Aluminum Hawse |
| Synthetic Rope | 3/8″×85.3′(9.2mm×26m) |
| Drum Size | 2.48″×8.74″(63mm×222mm) |
| Remote | Rugged Rubber, Toggle switch, 12' |

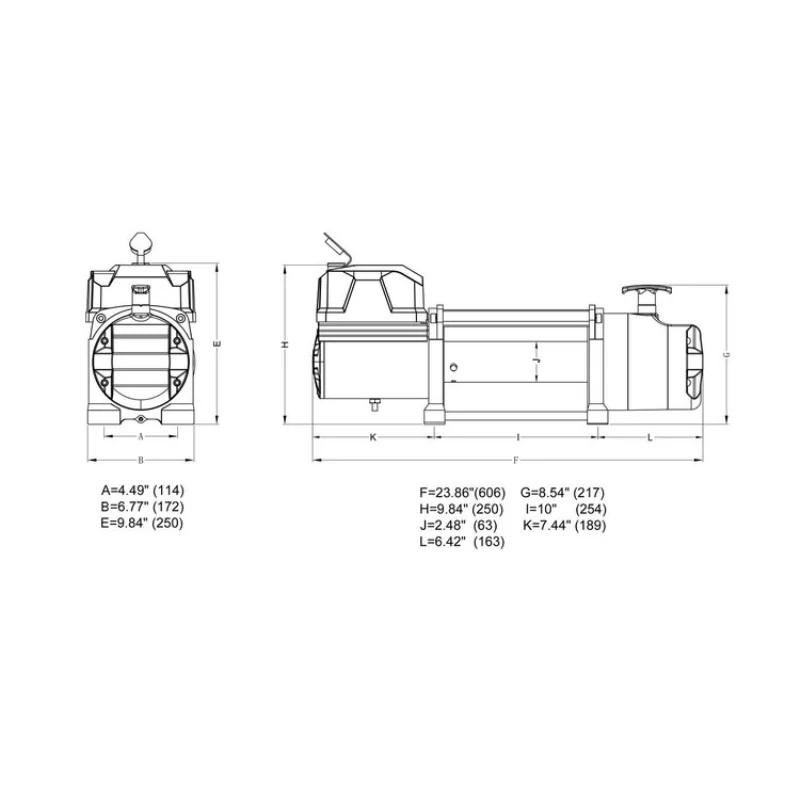

| Dimensions | 23.86″×6.77″×9.84″(606mm×172mm×250mm) |
| Mounting Bolt Pattern | 10″×4.5″(254mm×114.3mm) |
| Weight | 95.8 lbs(43.5kgs) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Novawinch PRO 12500 winch, 12v, Synthetic Rope Model 701001068584
The NOVAWINCH PRO Series is built to be the very best winch using the very best in performance parts. The Novawinch commitment to excellence is evident in every aspect of its design. Featuring exclusive innovations such as the industry-first brake that doesn’t heat the rope drum, the NOVAWINCH PRO Series sets a new standard for winch performance. With excitingly fast line speed and a host of other cutting-edge features, it delivers unmatched reliability, durability, and efficiency in every operation.
- It's fast. Sealed 6.0 HP motors deliver a quick but safe 52 FPM line speed at a low 50 Amp draw.
- Smart electronics: Anti-high temperature silver pad, 500A Sealed contactor. Only 360A full load current which is the lowest in the industry field. The contactor will never get stuck.
- IP68 rated sealing keeps elements out and winch running.
- Smart brake: innovative “Double-lock” 100% load-holding brake design provides zero drag on cable in. Located inside the gearbox away from the drum to eliminate heat transfer to the synthetic rope.
- Made to last: SUS304 stainless steel hardware on winch body and roller fairlead, 2 aluminum tie bars for rigidity and 45 degree clocking freespool for tricky mounts.
| PRO 12500 Specifications | |
| Rated Line Pull | 12,500 lbs (5670kgs) |
| Motor(Series wound): | DC 12V: 6.4hp/4.7kW |
| Gear Box | 2-Stage Planetary/2-Stage Spur Gear |
| Gear Ratio | 171:1 |
| Clutch | Pull & Turn |
| Braking Action | Automatic, 100% Load Holding Brake in gear box |
| Fairlead | Aluminum Hawse |
| Synthetic Rope | 3/8″×85.3′(9.2mm×26m) |
| Drum Size | 2.48″×8.74″(63mm×222mm) |
| Remote | Rugged Rubber, Toggle switch, 12' |
| Dimensions | 23.86″×6.77″×9.84″(606mm×172mm×250mm) |
| Mounting Bolt Pattern | 10″×4.5″(254mm×114.3mm) |
| Weight | 95.8 lbs(43.5kgs) |
