CTech VanPro Package MS2 Model MS-144-PRO-2

CTech VanPro Package MS2 Model MS-144-PRO-2

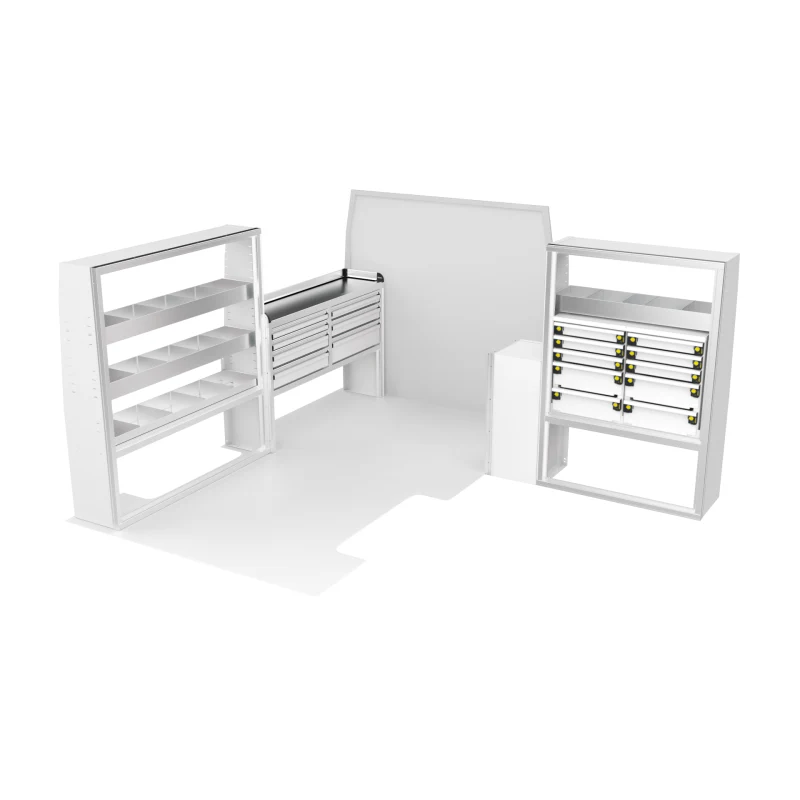

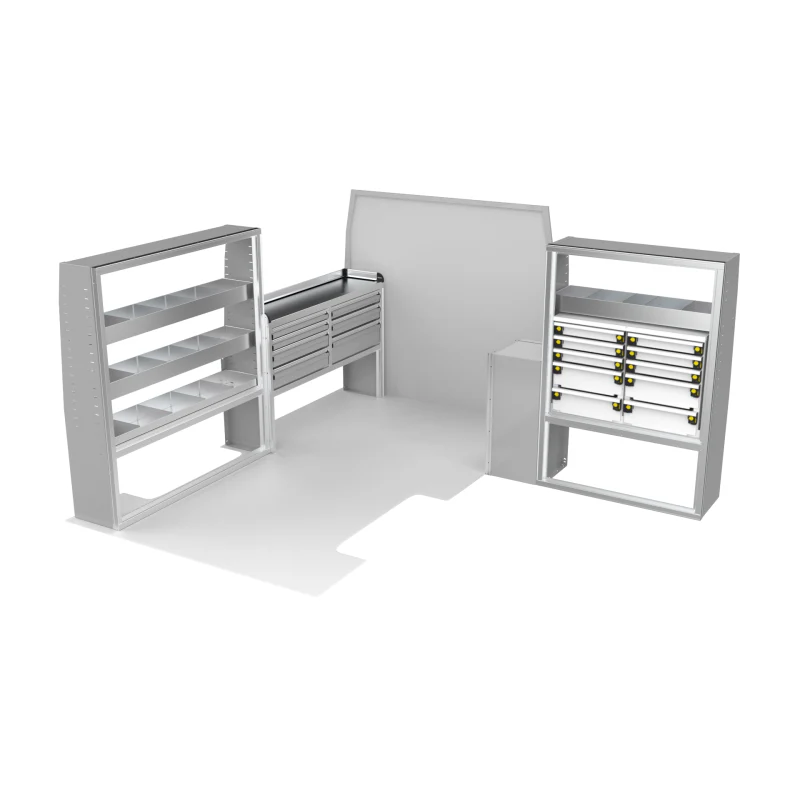

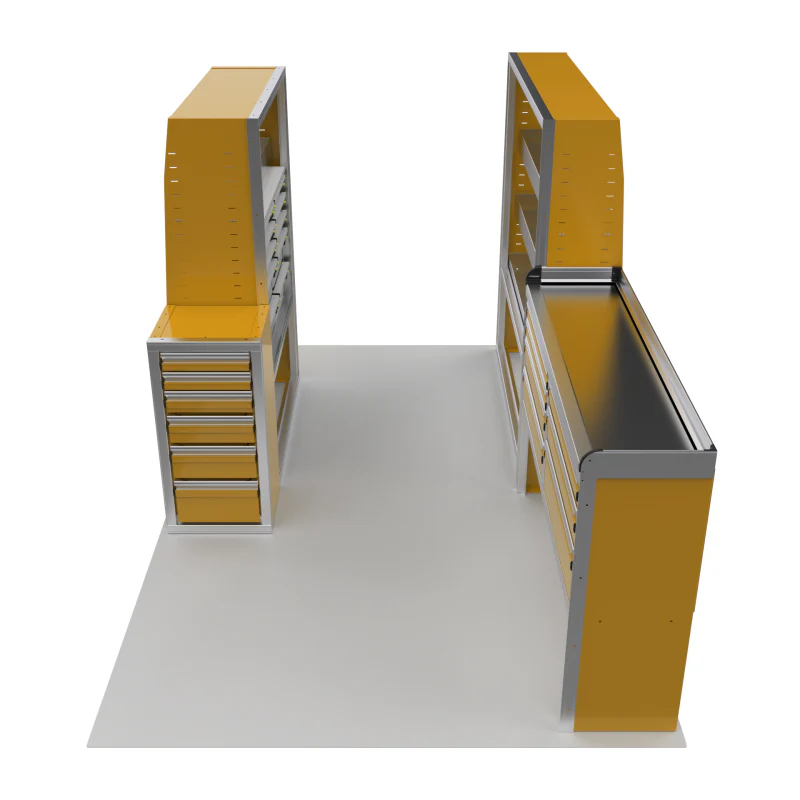

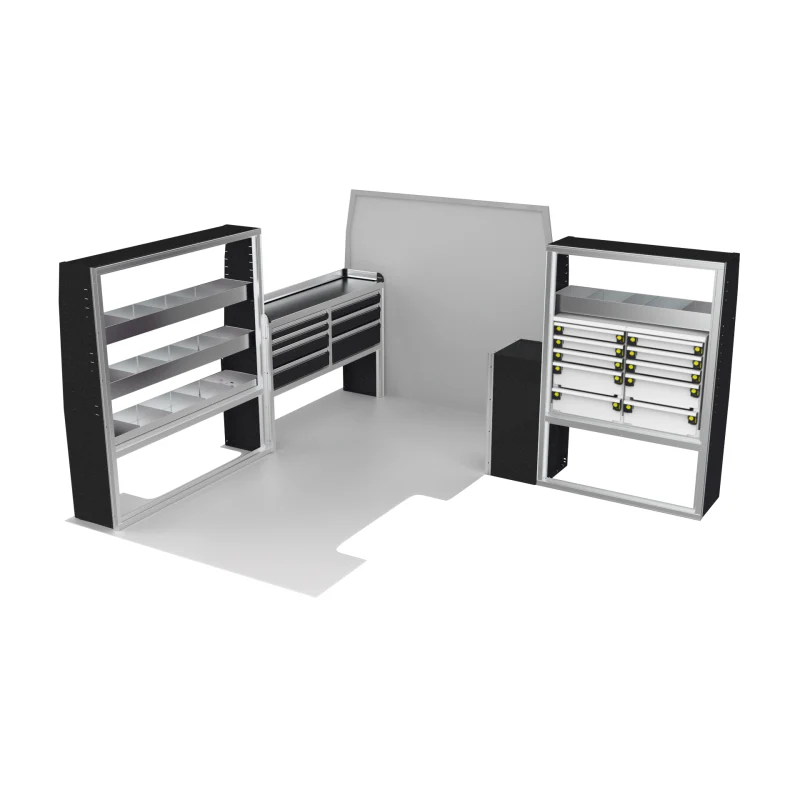

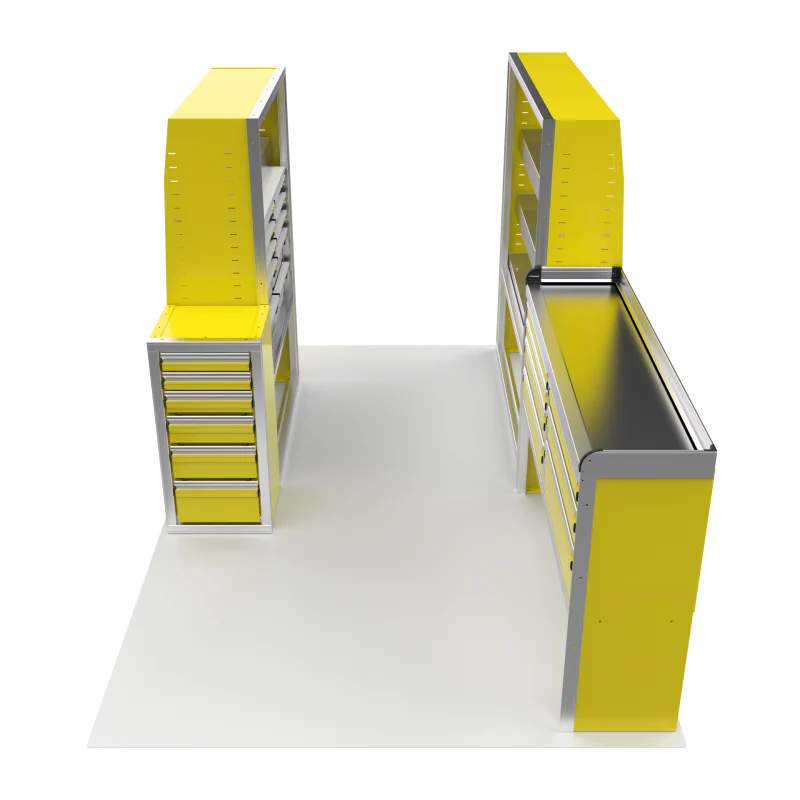

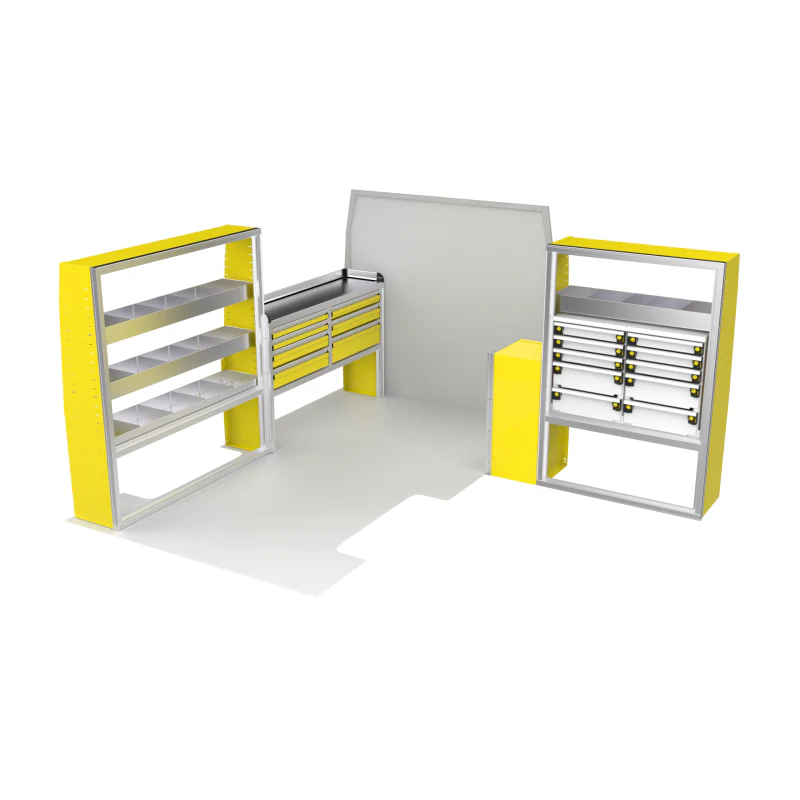

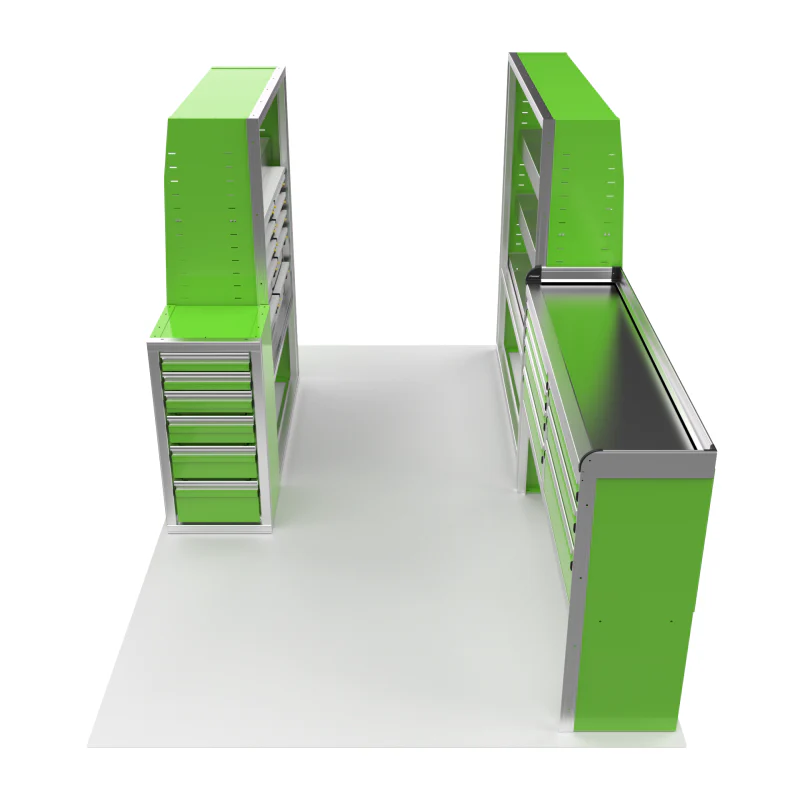

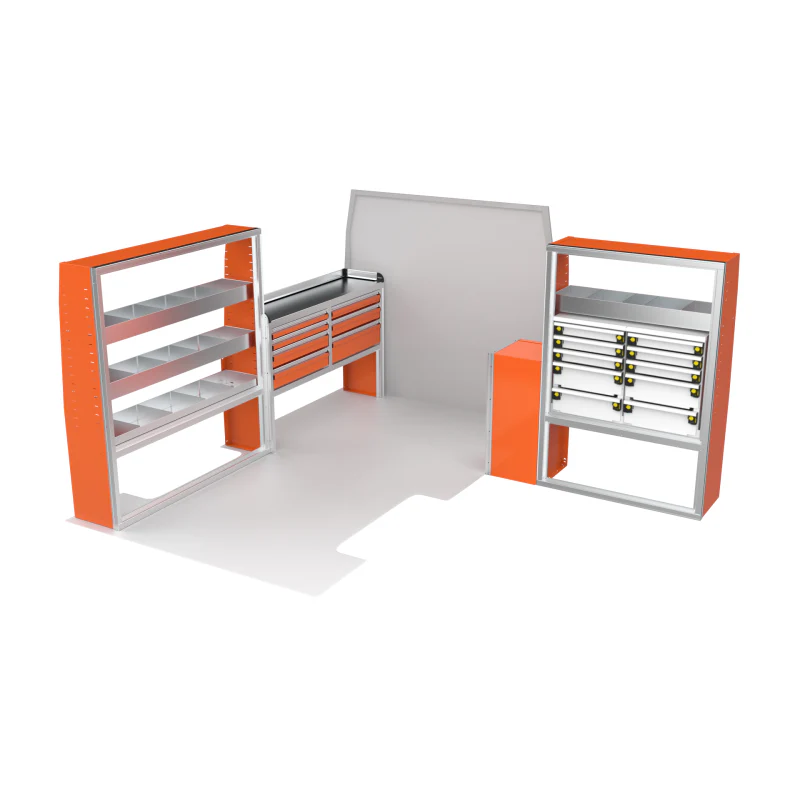

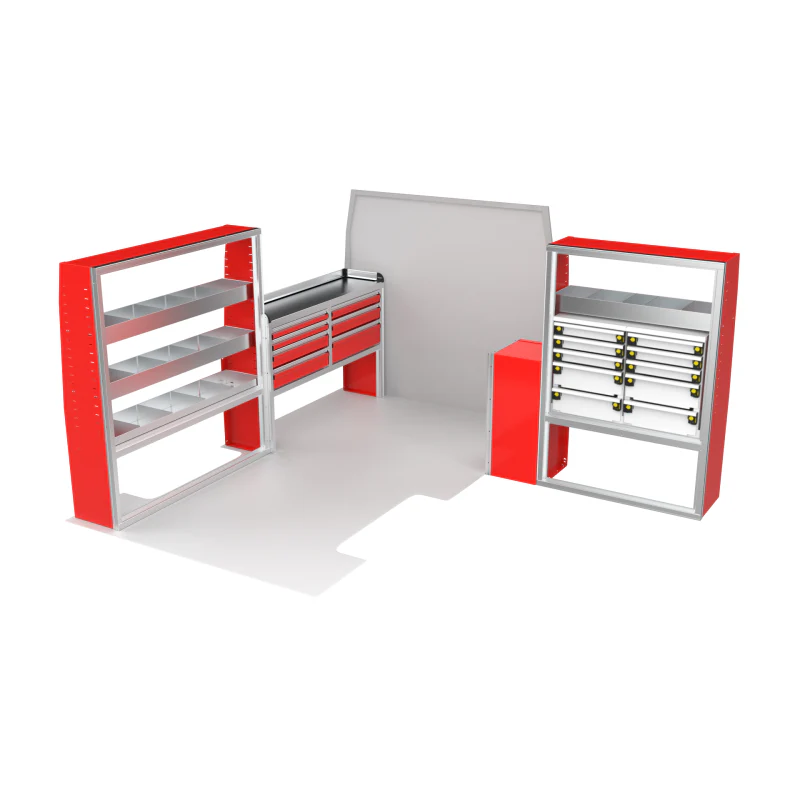

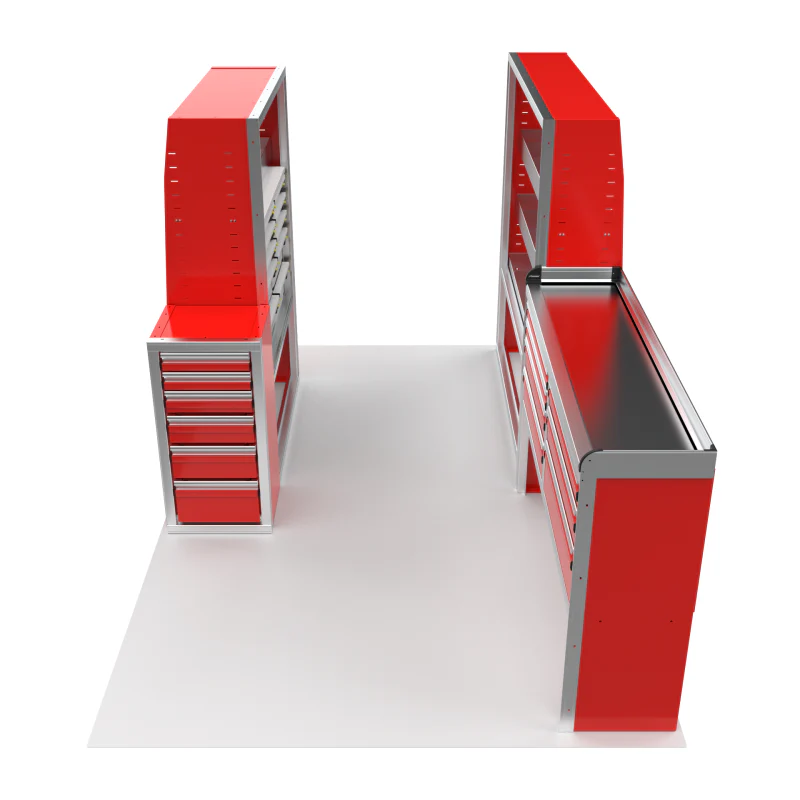

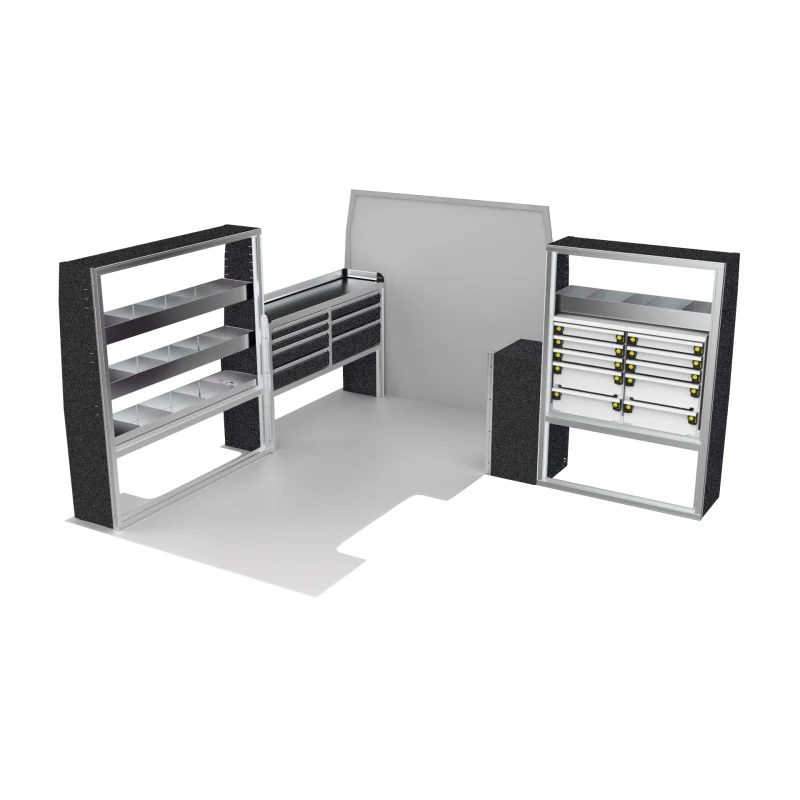

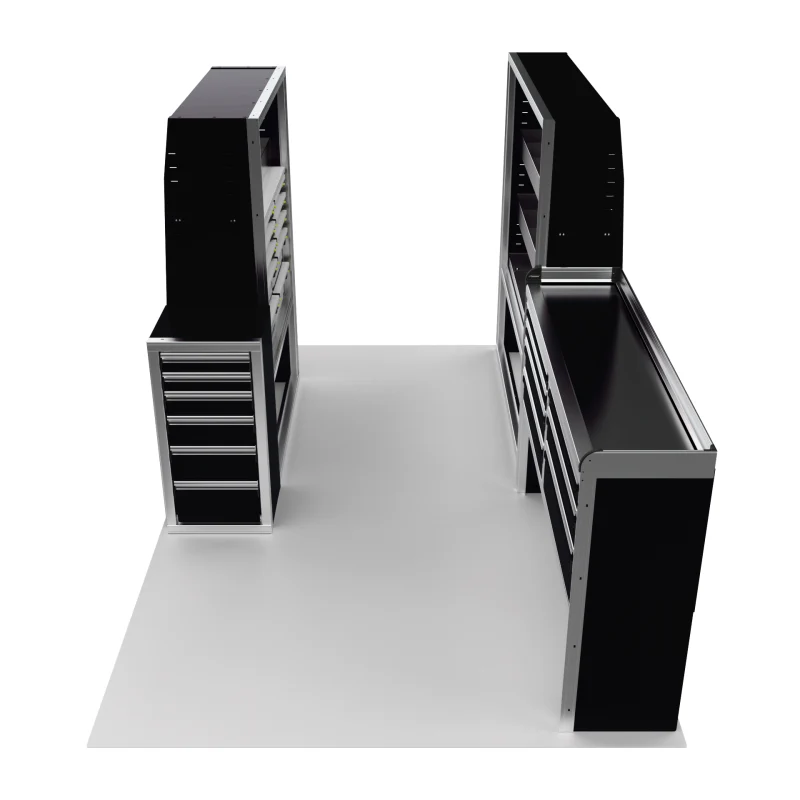

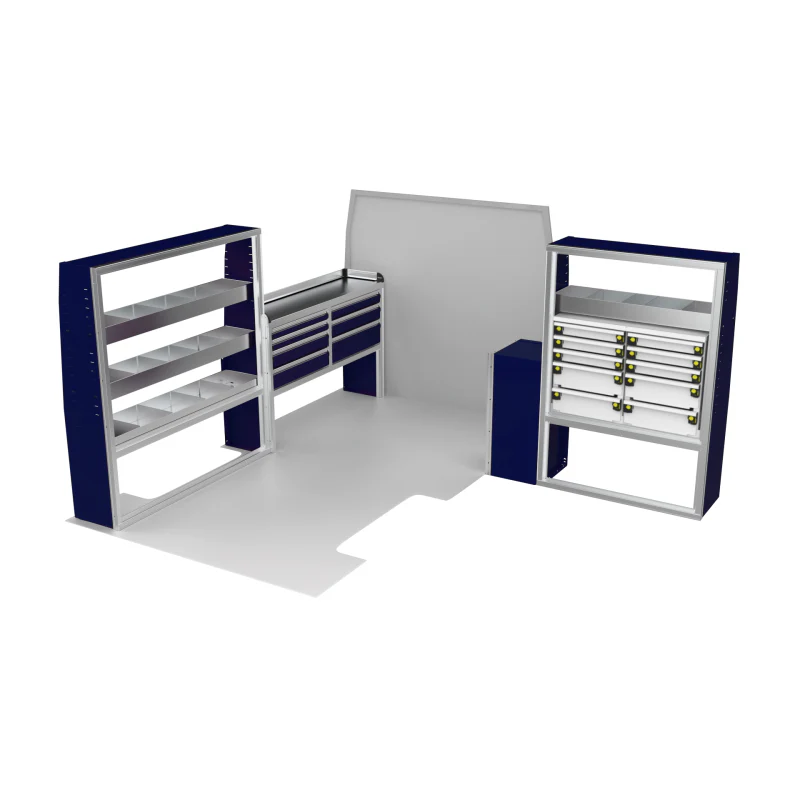

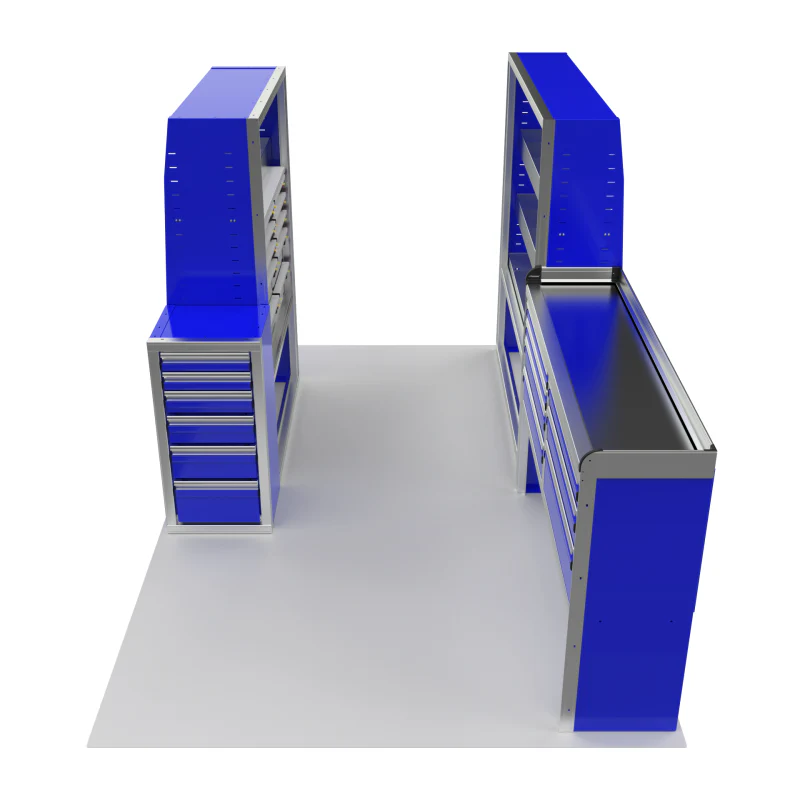

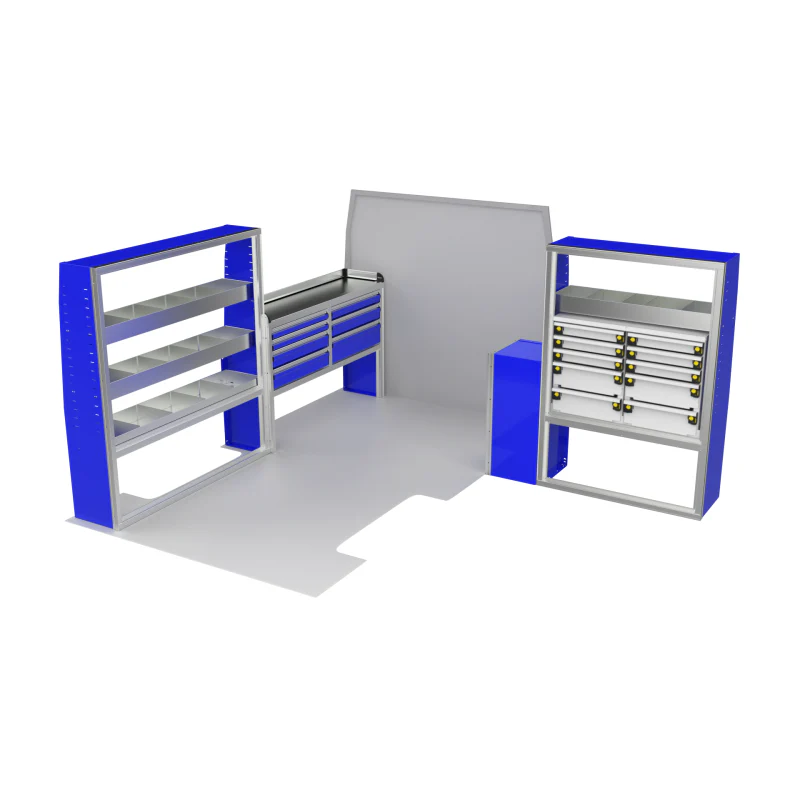

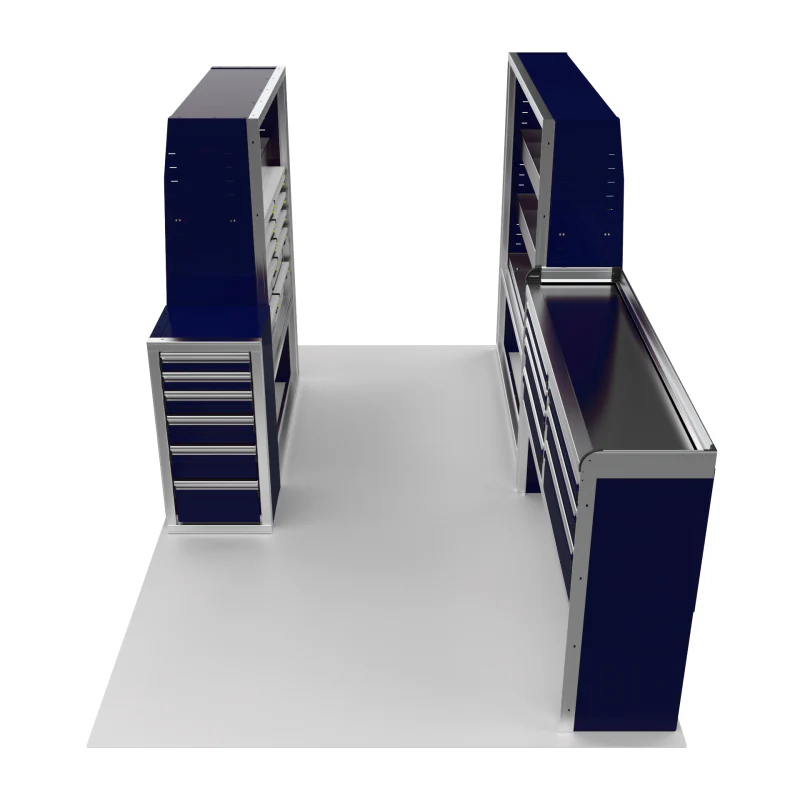

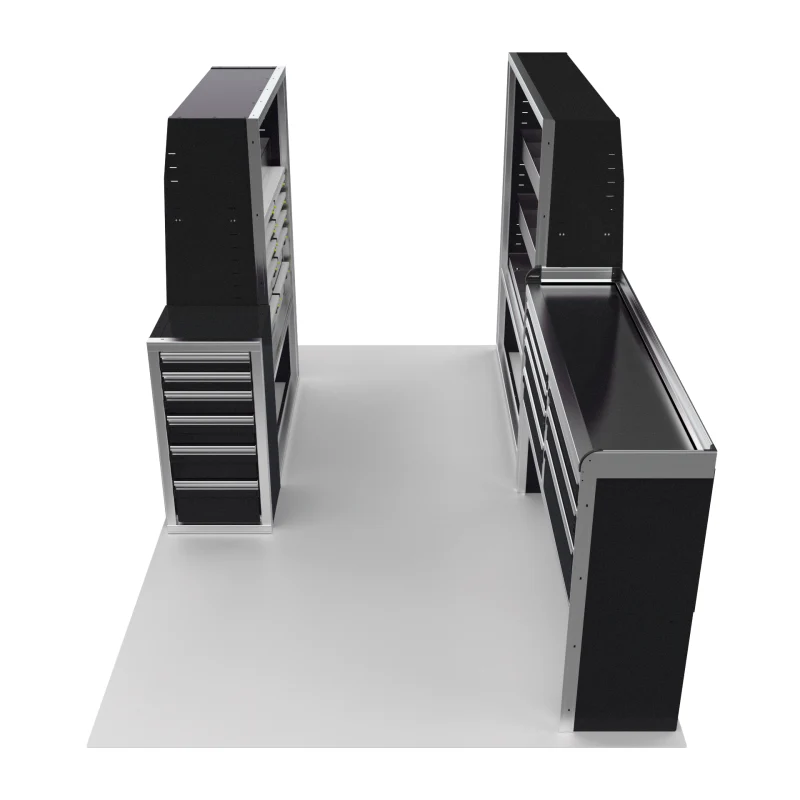

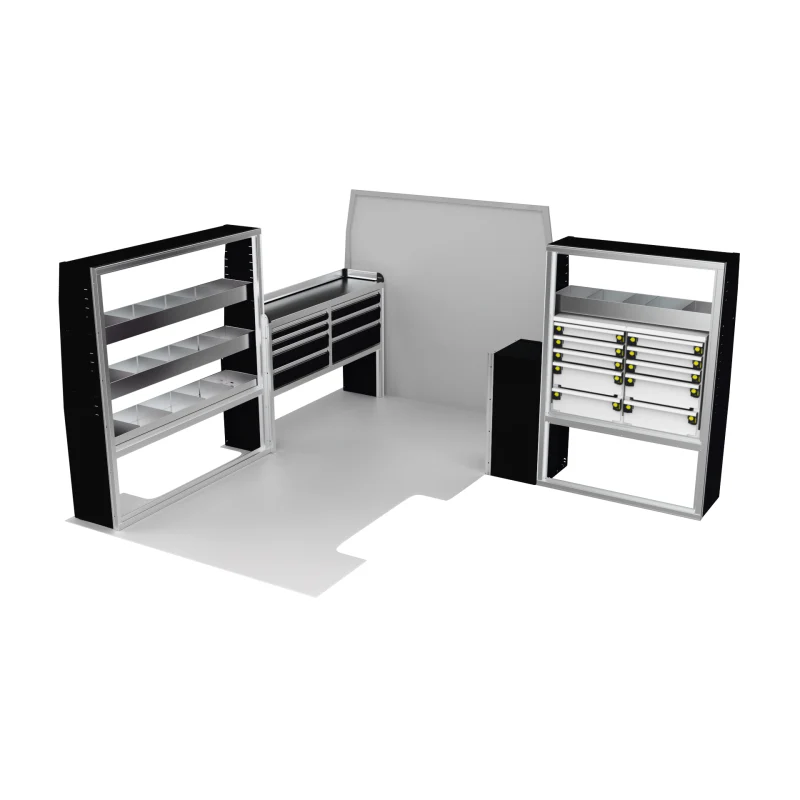

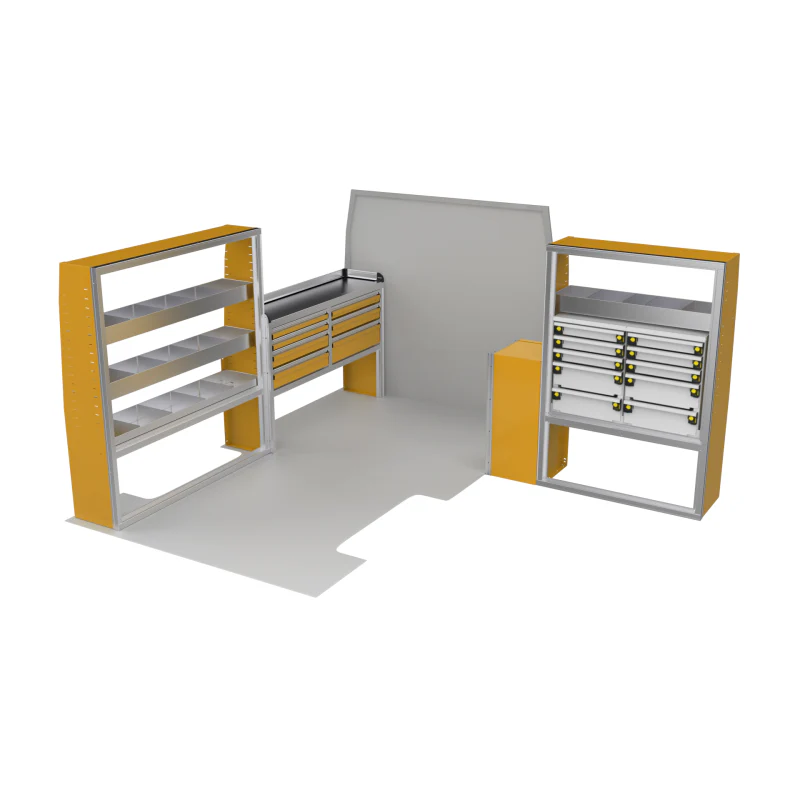

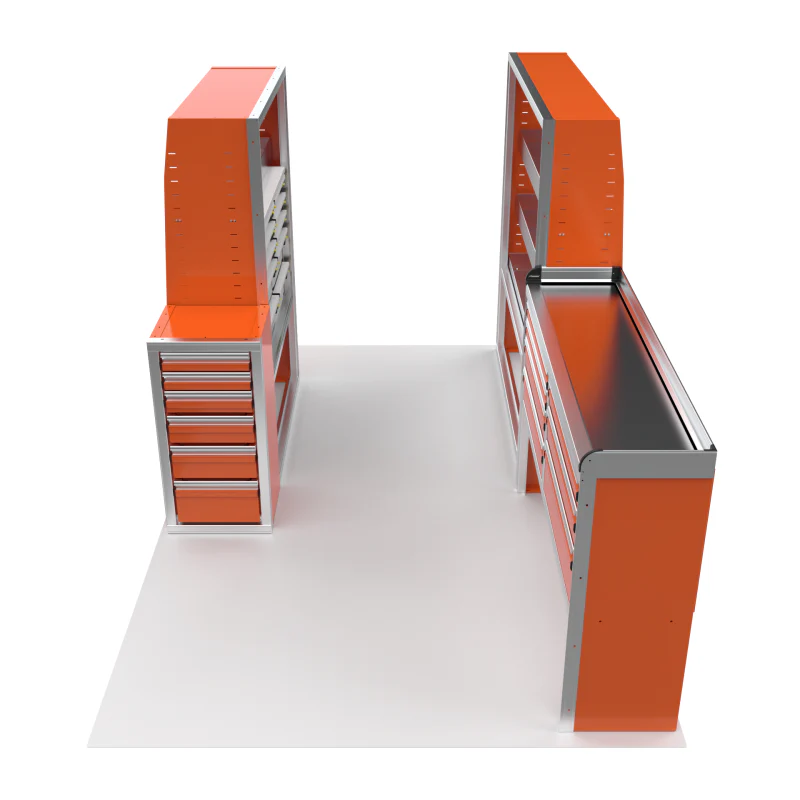

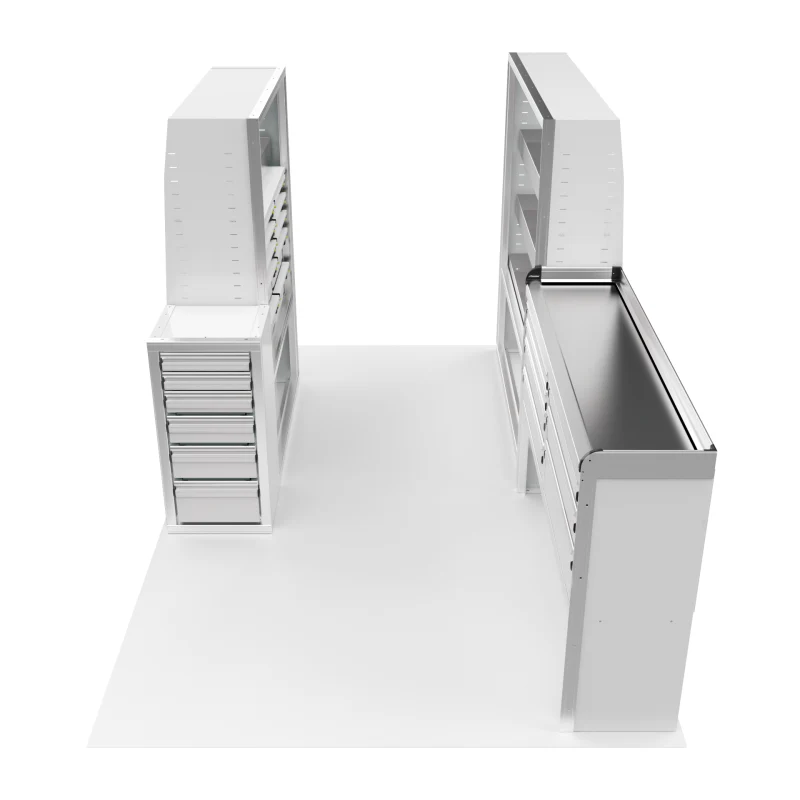

The VanPro Package MS2 for the Mercedes Sprinter 144 includes the MS300 Shelving Unit, MS301 MotionGlide Shelving Unit, MS307 Workbench, and MS308 Drawer Housing. This combination of shelving, workbench, and drawer housing offers a versatile and efficient storage solution tailored to your mobile workspace. With adjustable shelves, motion-controlled drawers, and organized workspaces, this package ensures optimal organization and accessibility of tools and equipment, all while maintaining a compact fit for the Sprinter 144 model.

Features:

• Two Inch Shelf Adjustment
• Lightweight
• Removable Dividers
• Shelves can adjust vertically

Cabinet Overview

Model/Part	Details
MS-307 Workbench	Quantity: 1 Overall Size: 56"W x 36"H x 14"D Frame Size: 56"W x 36"H x 14"D Note: Cabinet height excludes 2.25" backsplash
MS-300	Quantity: 1 Overall Size: 56"W x 60"H x 14"D Frame Size: 56"W x 60"H x 14"D
MS-301 MotionGlide Cabinet	Quantity: 1 Overall Size: 41"W x 60"H x 16"D Frame Size: 41"W x 60"H x 16"D
MG-9 MotionGlide Unit	Quantity: 2 Mounted in: MS-301 Unit Size: 18"W x 25"H x 14"D Drawer Heights: 3", 3", 3", 6", 6"
MS-308 Drawer Housing	Quantity: 1 Overall Size: 16"W x 32"H x 14"D Frame Size: 16"W x 32"H x 14"D

Cabinet Options

• GasketLoc Countertop - Plastic Laminate (MS-307)
• Clear Anodized Door and Drawer Handles
• Clear Anodized Frame
• Back Panel (where noted)
• Bottom Rail
• Top Panel
• Floor Panel (MS-308)
• Custom Deep Shelves with 4 Dividers (MS-300)
• Two MG-9 Units Mounted on Fixed Shelf (MS-301)
• Sprinter Profile

Opening Details

Model/Opening	Details
MS-307 - Opening 1	Size: 25.75"W x 17"H Drawers: 3", 3", 5", 5" [Lnr] Slide Type: Medium Duty 12" (x4) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"
MS-307 - Opening 3	Size: 25.75"W x 17"H Drawers: 4", 5", 7" [Lnr] Slide Type: Medium Duty 12" (x3) Inside Drawer Dim: 21.28"W x 11.671"D Bottom Space: 0.952"
MS-307 - Opening 2	Size: 53"W x 15.5"H EMPTY
MS-300 - Opening 1	Size: 53"W x 40"H EMPTY Adjustable Shelves: 2 (54.758"W x 12"D)
MS-300 - Opening 2	Size: 53"W x 15.5"H EMPTY Fixed Shelf
MS-301 - Opening 1	Size: 38"W x 40"H EMPTY Adjustable Shelf: 1 (39.758"W x 14"D)
MS-301 - Opening 2	Size: 38"W x 15.5"H EMPTY Fixed Shelf with 2 MG-9 Units Mounted
MS-308 - Single Opening	Size: 13"W x 29"H Drawers: 3", 3", 4", 5", 6", 7" [Lnr] Slide Type: Medium Duty 12" (x6) Inside Drawer Dim: 8.53"W x 11.671"D Bottom Space: 0.952"

Vehicle Fitment

Product Application	Work Van
Vehicle	Mercedes Sprinter
Model Year	2019-2025
Wheelbase	144"
Cargo Length	Standard
Cargo Roof Height	High
Chassis Rear Wheel Configuration	Single Rear Wheel (SRW)
